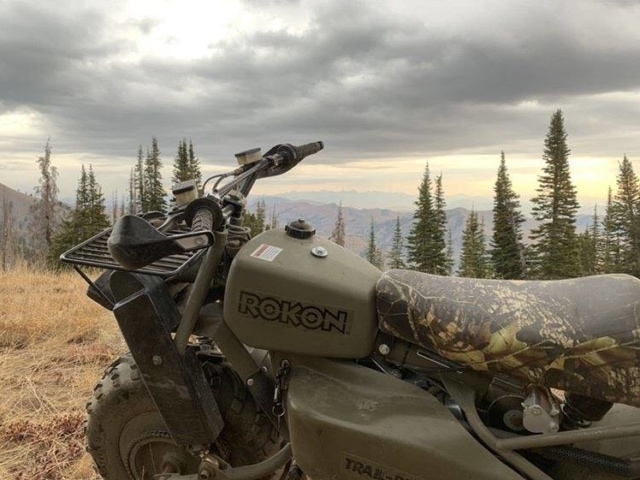

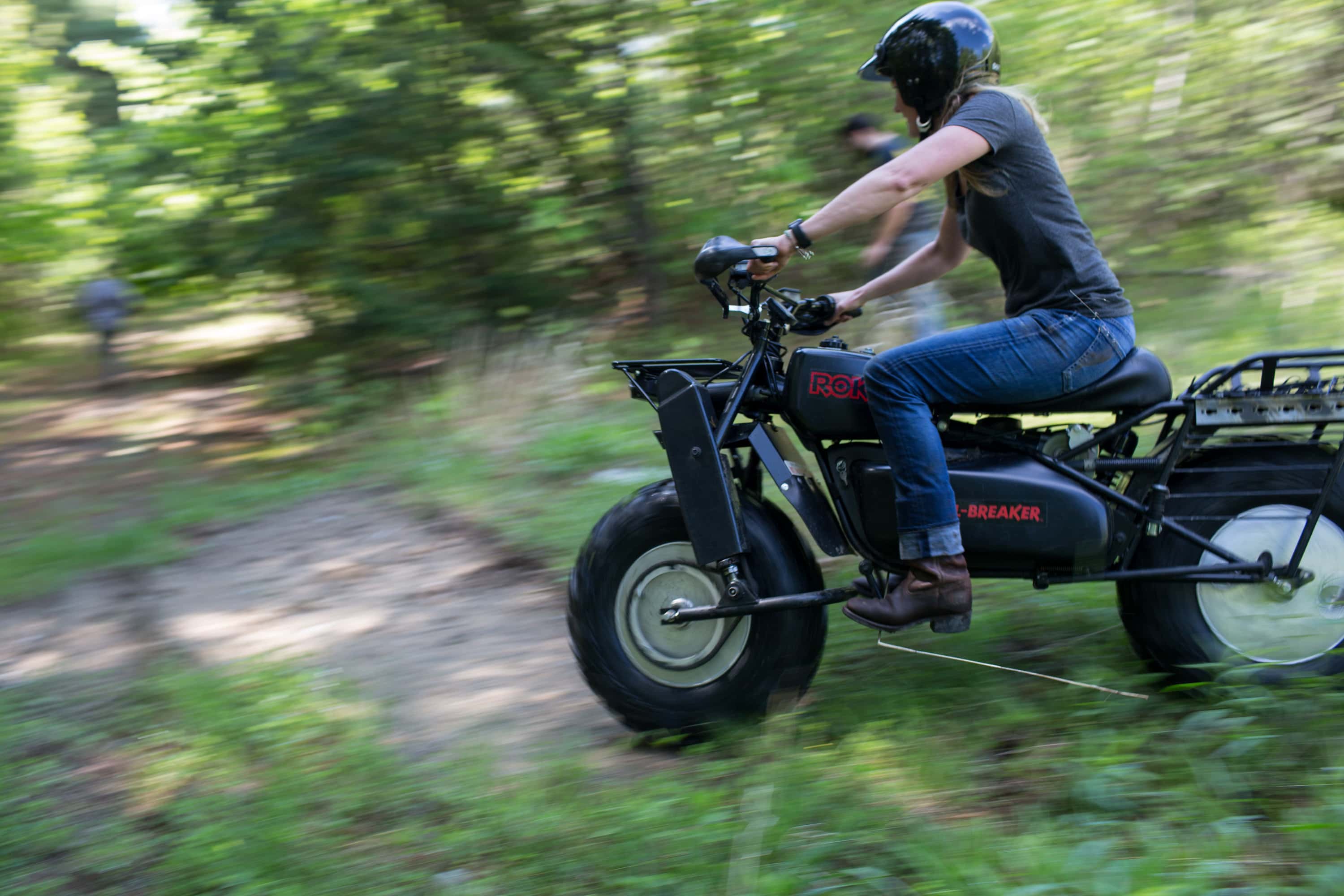

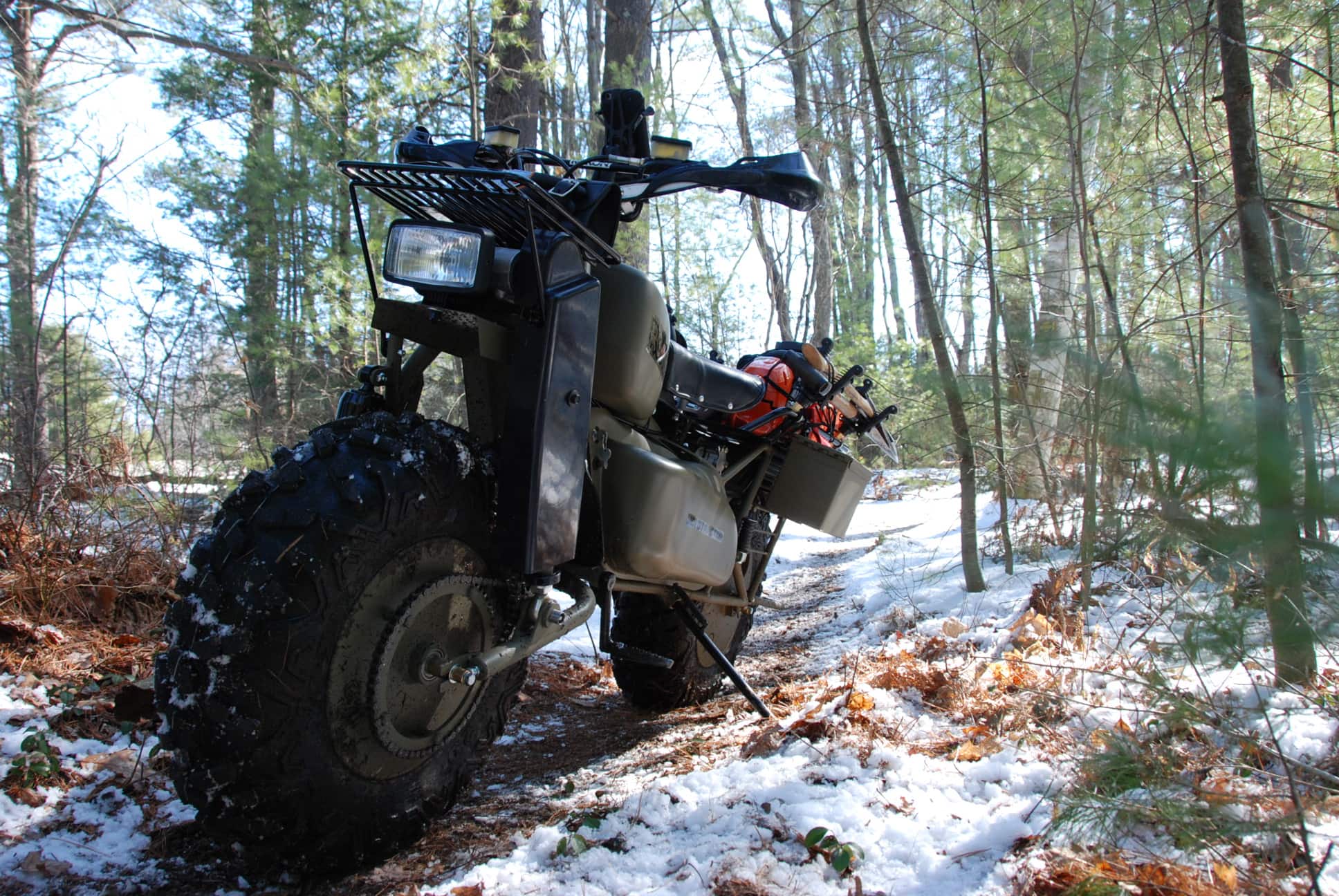

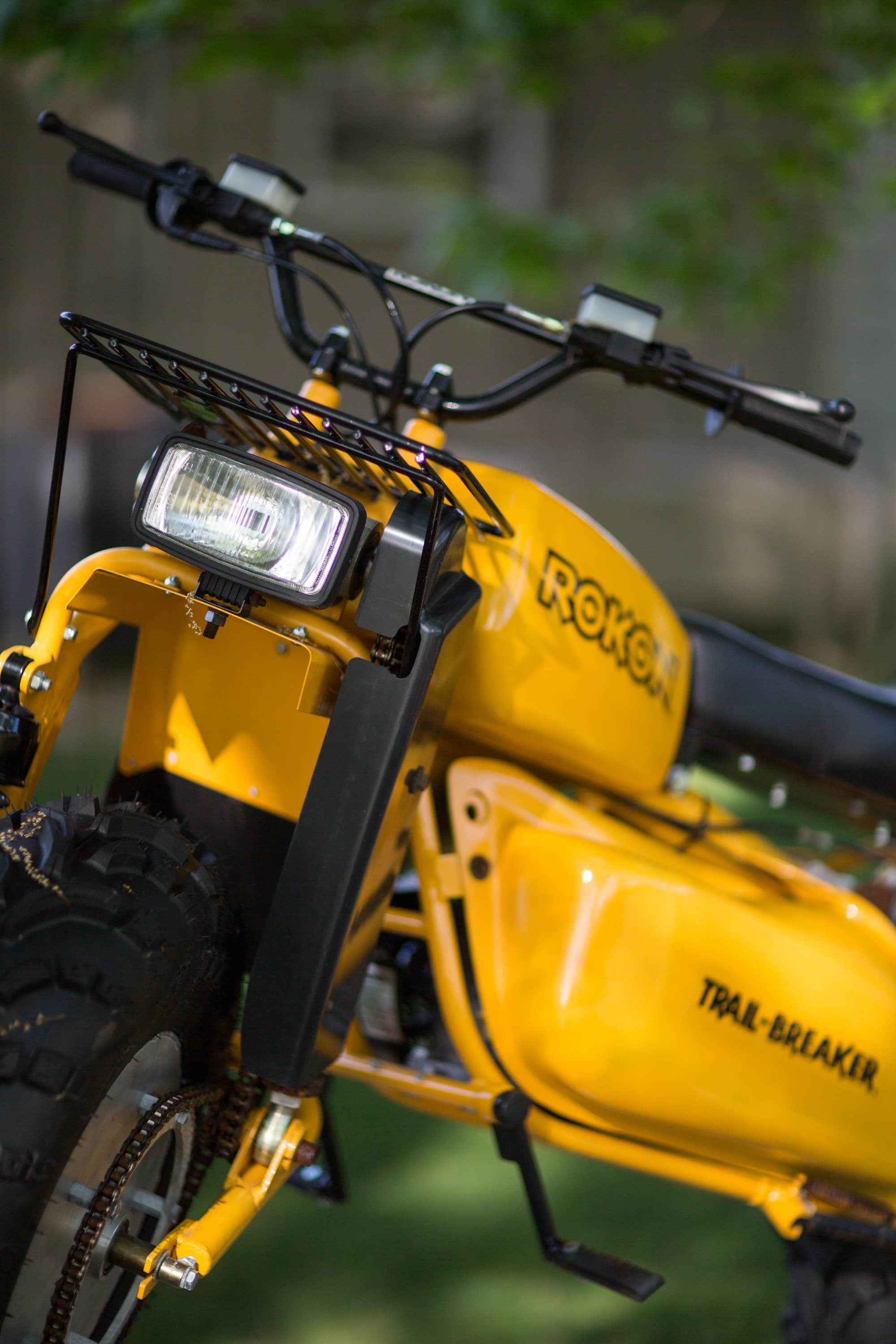

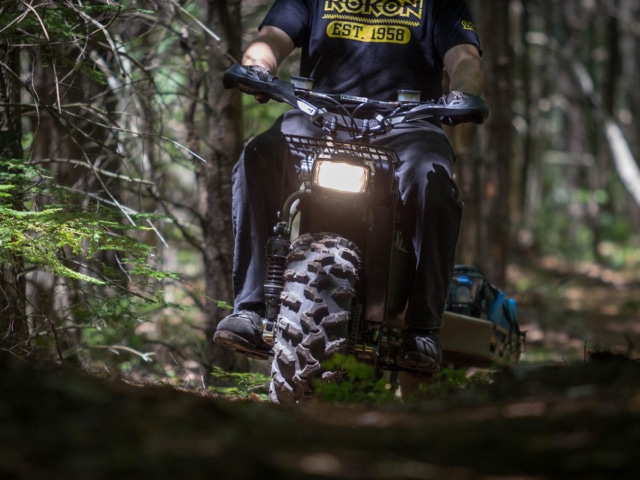

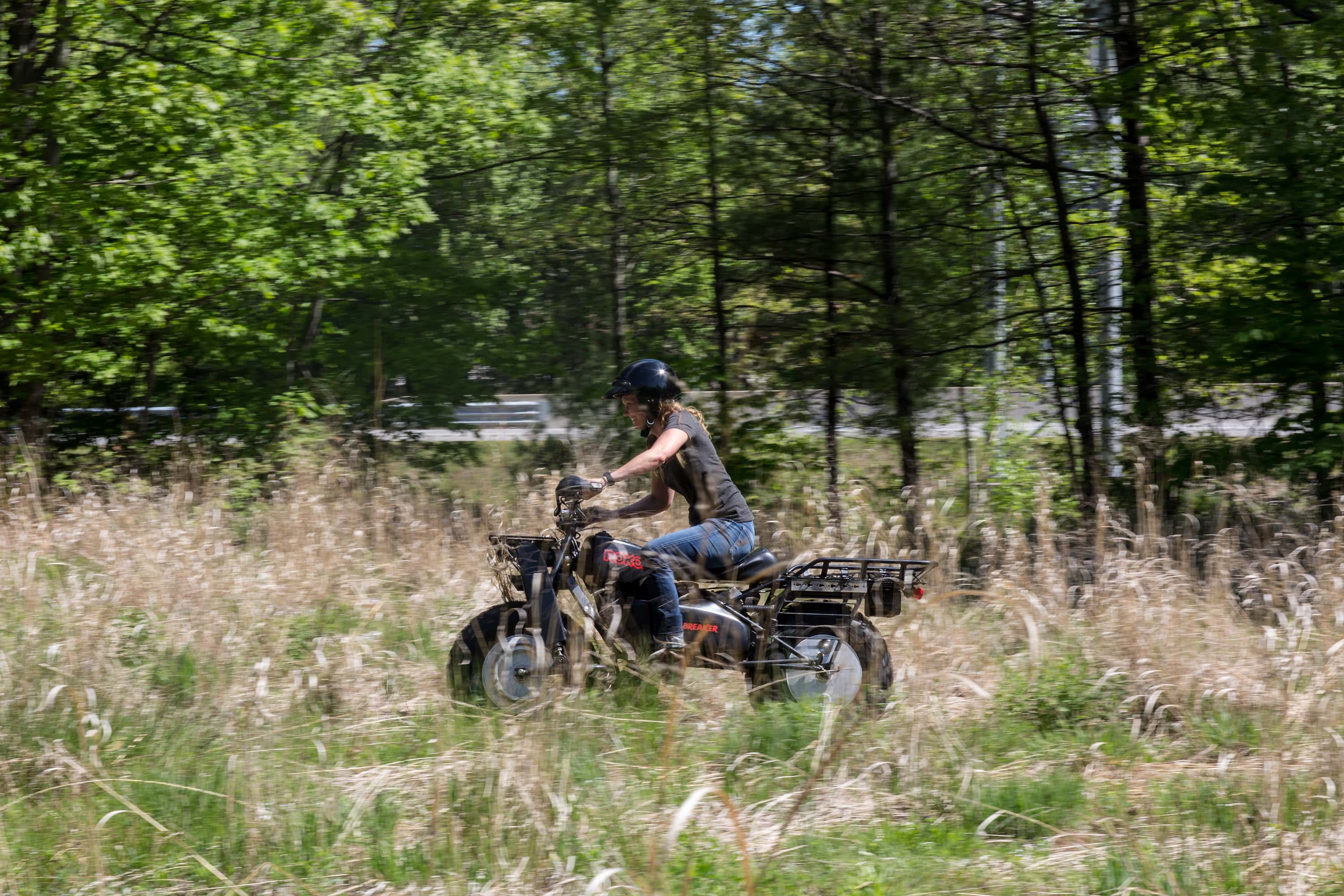

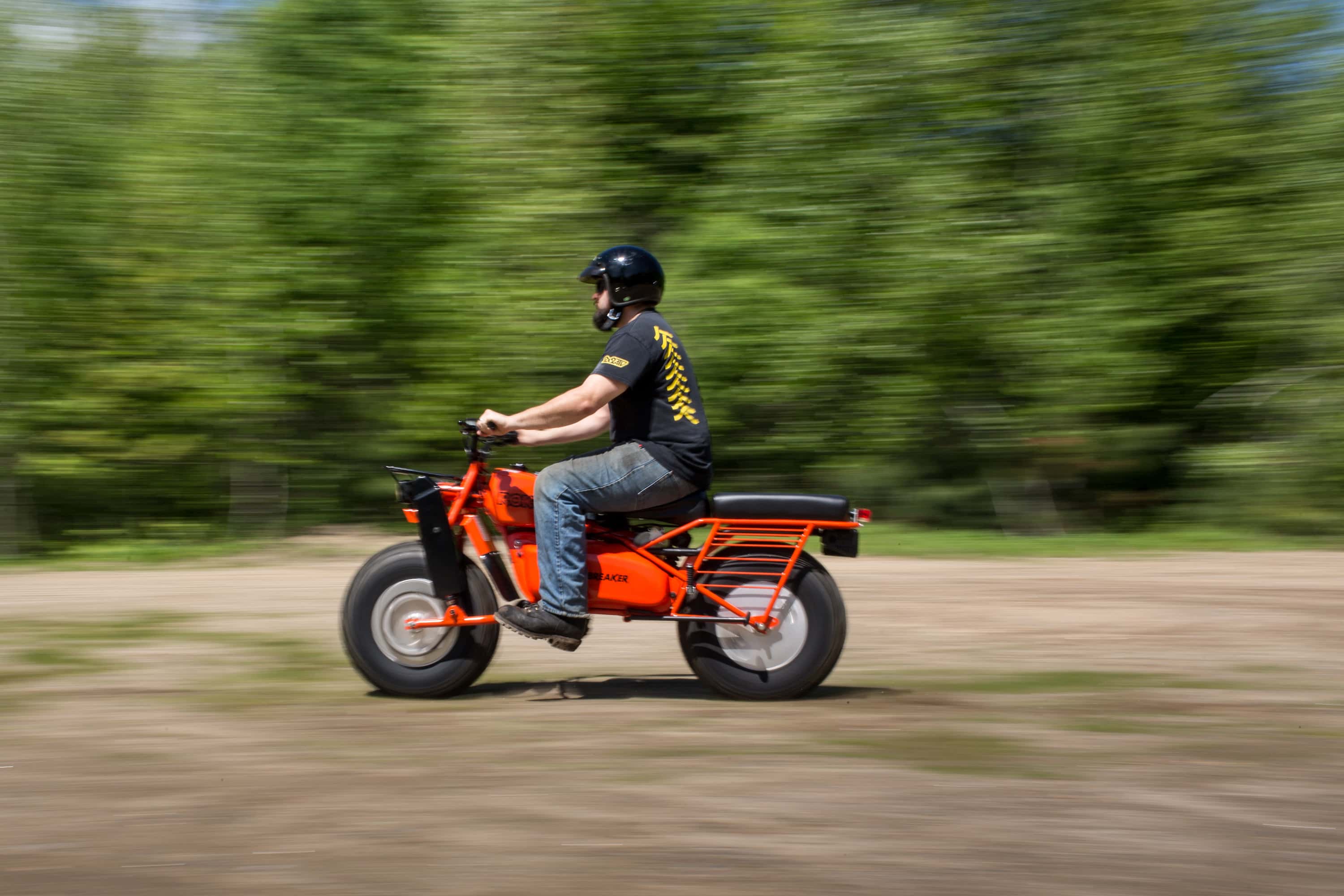

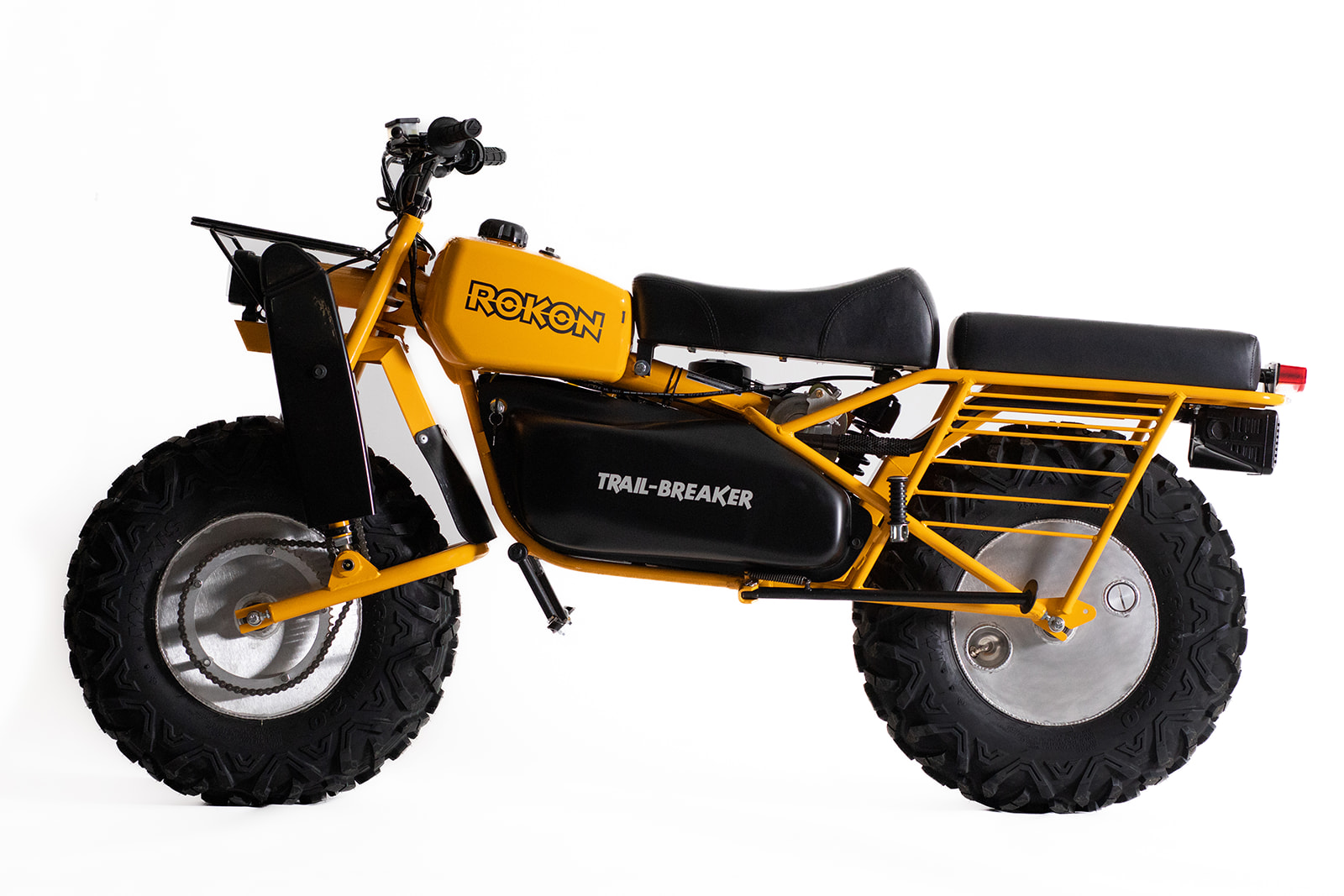

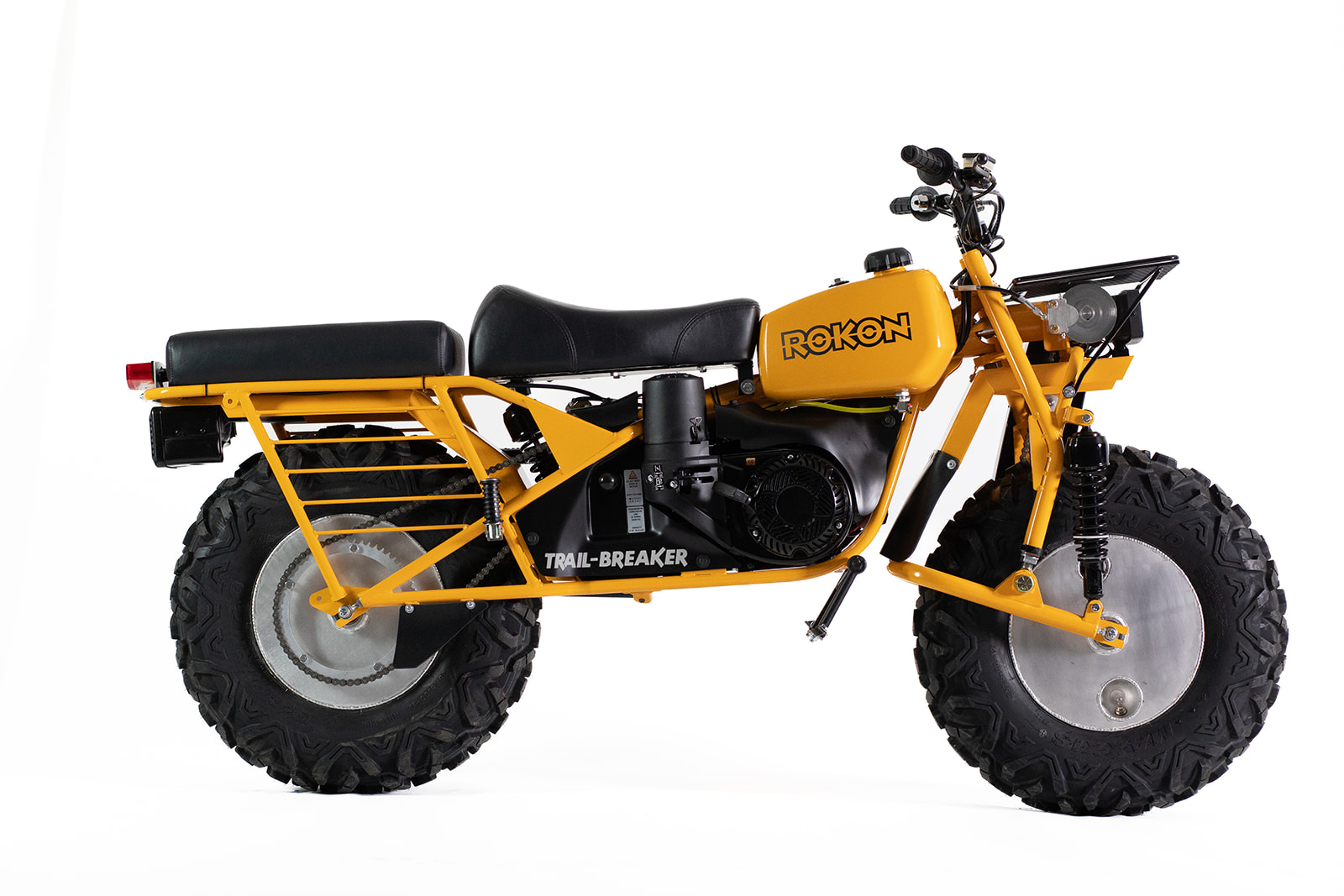

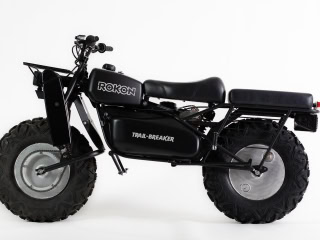

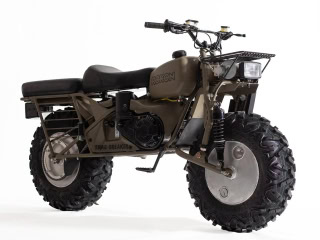

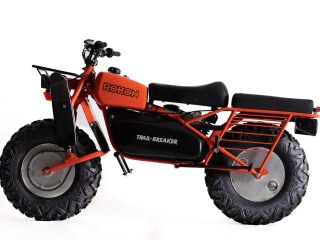

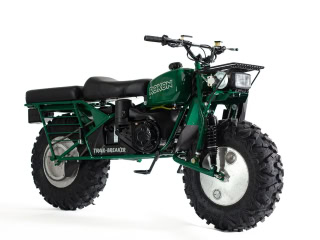

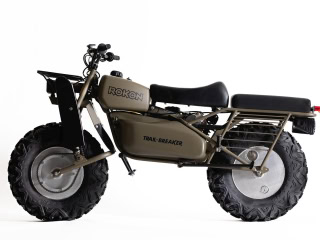

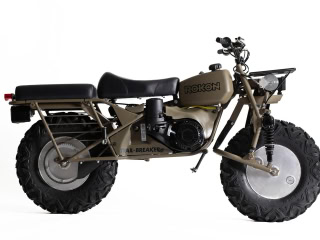

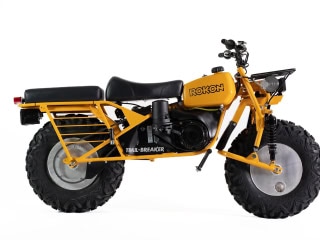

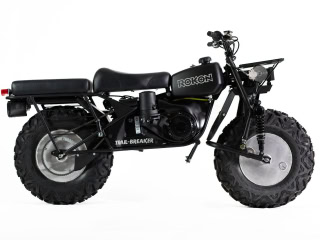

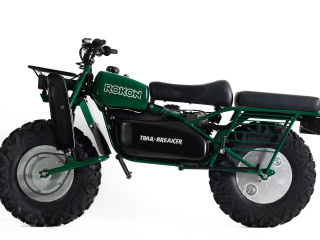

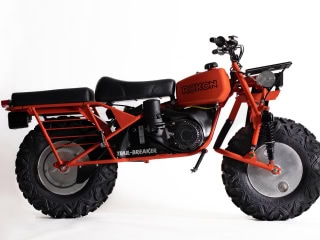

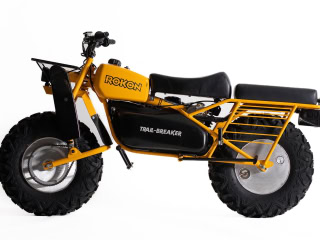

Trail-Breaker

$9,575.00

Go Anywhere

The Trail-Breaker’s classic design is a perfect blend of functionality and ease of use. Known for their ability to go anywhere, Trail-Breakers have been used by the United States’ Armed Forces, Forest Service, Fish and Game officers in some 25 states, countless big game hunters, trail builders, farmers, ranchers, and even treasure hunters. Since 1960, the Trail-Breaker has set the standard for Rokon.

Call or email us to order!

Add to Wishlist
Add to Wishlist
SKU: TB Category:

Advanced Suspension

Rugged Flexible Tires

High Power and Torque

Features

Trail-Breaker

Trail-Breakers have been used by the United States’ Armed Forces, Forest Service, Fish and Game officers in some 25 states, countless big game hunters, trail builders, farmers, ranchers, and even treasure hunters. Since 1960, the Trail-Breaker has set the standard for Rokon. Features include:

  • Suspension – Patented AutoGrab Front Suspension makes for a smooth ride even in demanding terrain like mud, sand, or snow.
  • Floatation – Hollow drum wheels can provide floatation or space for up to 2.5 gallons of extra fuel or water.

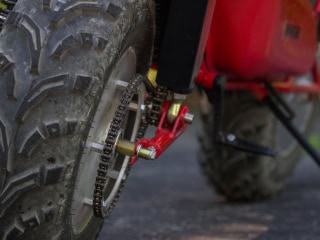

  • Powerful – Full time front and rear wheel drive with superior torque mean you can tow up to 2,000 lbs.

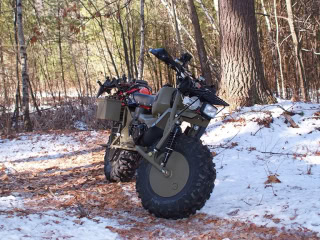

  • Climb – Climb a 60% grade. Rokons have climbed mountains from the Rockies of Colorado to the Andes of Chile. With a ground clearance of 14 inches, the Trail-Breaker can go up and over any terrain.
  • Stable – Wide tractor tires (8x12x25”) and a lightweight of 218 lbs. combined with all wheel drive provides unmatched stability in any terrain.
  • Reliable – Standard American nuts, bolts, and chain make Rokons easy to maintain and repair. Parts are widely available and manuals easy to follow.

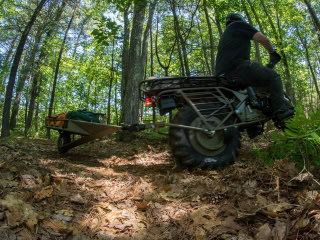

  • Versatile – From tow bars and saddle bags to side cars and log skidders, Rokon has a wide range of accessories to help you get any job done.
Made in America

Technical Specs

Drive System Full Time, Front and Rear wheel drive
Engine Kohler, single cylinder, four stroke, fan cooled
Piston Displacement 208cc
Power Output 7 HP at 3,600 RPM
Peak Torque 12.4 (9.1) Nm(ft. lb.) at 2,800 RPM
Power Transmission Automatic torque converter into a three-gear range selector
Speed Range 1st gear 0-10 MPH (16 kph) 2nd gear 0-20 MPH (32 kph) 3rd gear 0-35 MPH (56 kph)
Power Take Off 7 HP, speed proportional to throttle setting
Fuel Tank Capacity 2.69 US gal (10.0 L)
Fuel Regular unleaded gas
Fuel Consumption 0.33 gal/hr (211g/PS h)
Brakes Disc type, hydraulic front and rear with dual handlebar-mounted controls

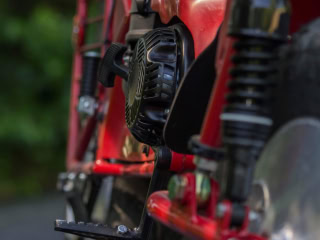

Starter Electric and pull start (automatic recoil with compression release)
Ignition Electronic Magneto
Electrical 12 volt
Exhaust Muffler and U.S. Forestry approved spark arrestor
Carburetor Fixed Main Jet Carburetor
Air Filter Dry type, with foam secondary stage
Grade Capability 60 percent
Warranty 12 Month Limited Warranty
Wheels 12 Inch aluminum drums
Tires 8 x 12 x 25" tubeless
Wheel Base 51 Inches (129.5 cm)
Ground Clearance 15 Inches (38.1 cm)
Height Over Seat 32 Inches (81.3 cm)
Height Over Handlebar 41 Inches (104 cm)
Width 32 Inches (81.3 cm)
Length 79 Inches (200.7 cm)
Weight 218 lbs. (98.8 kg) dry weight

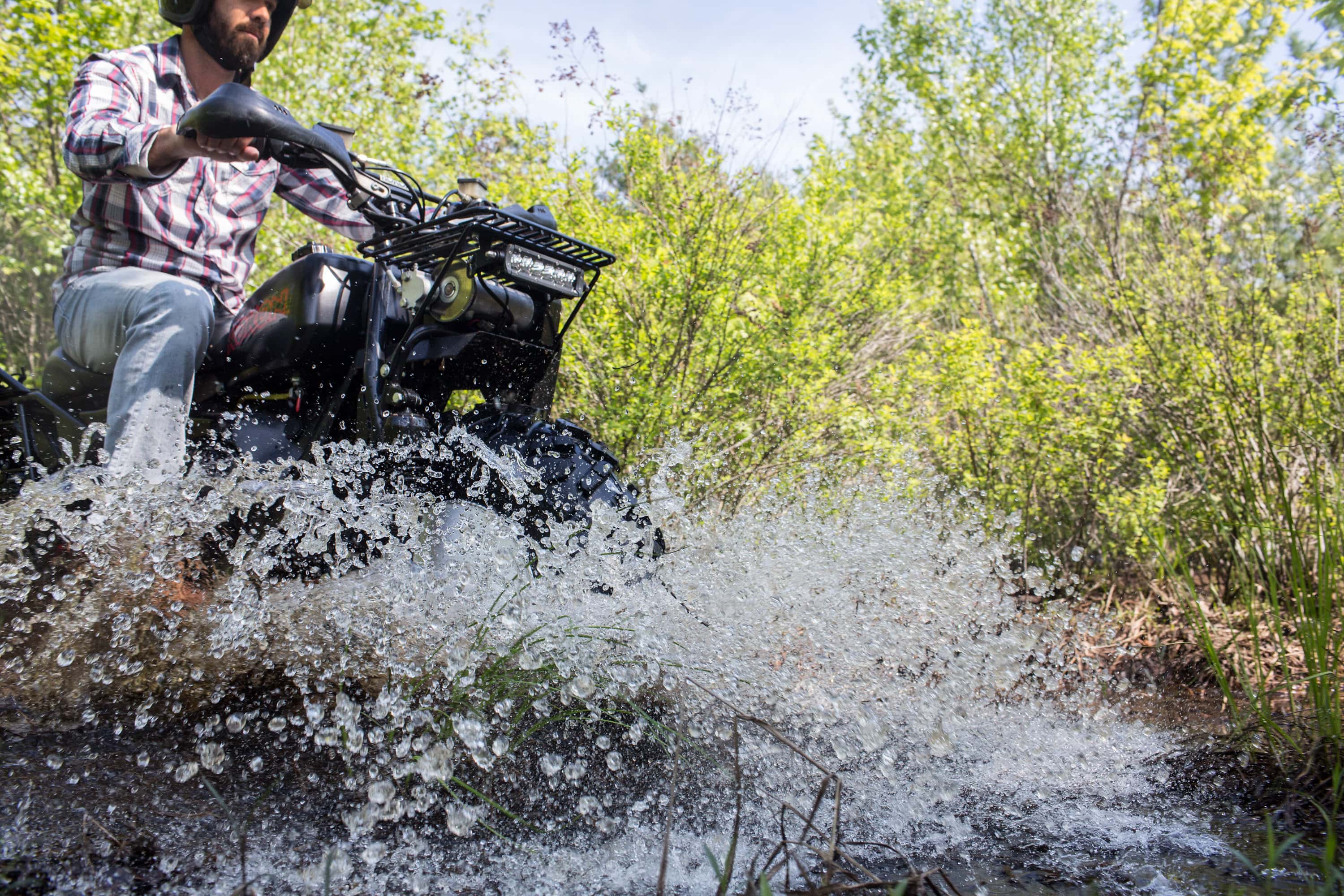

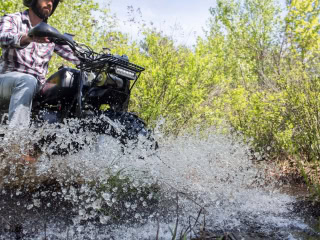

Fordable Water Depth 24 Inches (61 cm)
