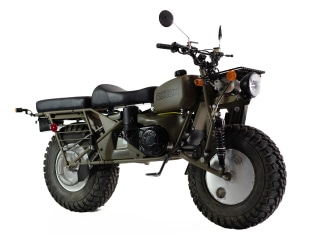

od-ranger-Q zoom

Hover

od-ranger-Q
Full Screen

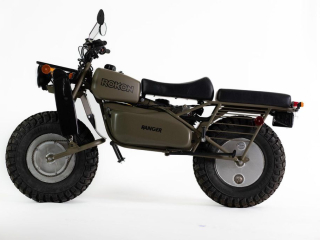

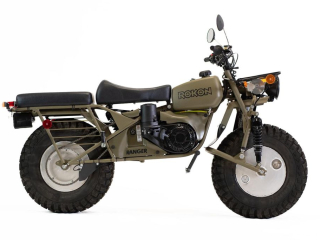

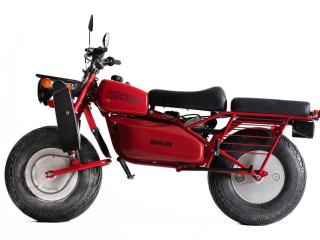

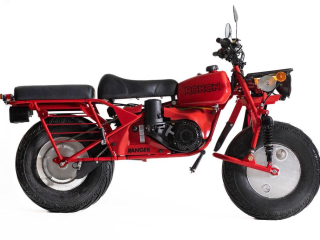

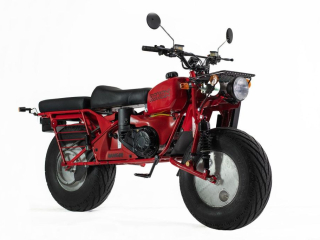

Ranger- Dual Sport Edition

$10,575.00

The redesigned Ranger takes the classic Rokon power and torque on the road in this dual sport model Rokon. With additional components and DOT approved tires, the Ranger can be registered for road use in all 50 states.

Call or email us to order! This product is not available for purchase online.

Add to Wishlist
Add to Wishlist
SKU: R Category:

Advanced Suspension

Rugged Flexible Tires

High Power and Torque

Features

Ranger- Dual Sport Edition

Street Legal components:

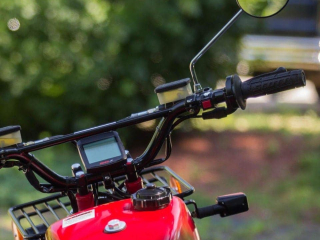

Gauges – Digital speedometer, odometer, tripmeter installed.

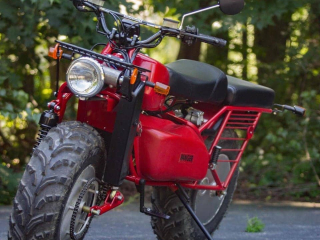

Lights – Upgraded headlight, turn signals, license plate light, and reflectors.
Tires – DOT Approved.
Mirrors – Dual rear view mirrors mounted on the handlebar.
Horn –  Installed and operated from control mechanism on the handlebar.

Features include:

Increased Speed – Ride at up to 37 MPH with the Ranger.
Powerful – Full time front and rear wheel drive with superior torque mean you can tow up to 2,000 lbs.

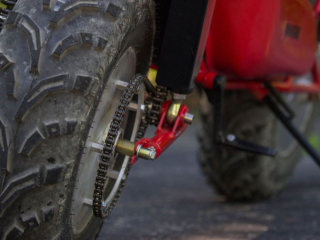

Reliable – Standard American nuts, bolts, and chain make Rokons easy to maintain and repair. Parts are widely available and manuals easy to follow.
Versatile – From tow bars and saddle bags to side cars and log skidders, Rokon has a wide range of accessories to help you get any job done.

Made in America

Technical Specs

Drive System Full Time, Front and Rear wheel drive

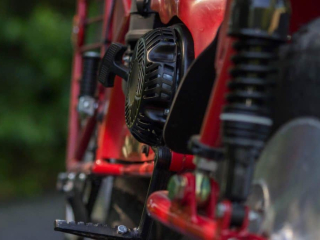

Engine Kohler, single cylinder, four stroke, fan cooled
Piston Displacement 208cc
Power Output 7 HP at 3,600 RPM
Peak Torque 12.4(9.1) Nm(ft. lb.) @ 2,800 RPM
Power Transmission Automatic torque converter into a three-gear range selector
Speed Range 1st gear 0-12 MPH (19 kph) 2nd gear 0-24 MPH (38 kph) 3rd gear 0-37 MPH (59 kph)
Power Take Off 7 HP, speed proportional to throttle setting
Fuel Tank Capacity 2.69 US gal (10.0 L)
Fuel Regular unleaded gas
Fuel Consumption 0.33 gal/hr (211g/PS h)
Brakes Disc type, hydraulic front and rear with dual handlebar-mounted controls
Starter Electric and pull start (automatic recoil with compression release)
Ignition Electronic Magneto
Electrical 12 volt
Exhaust Muffler and U.S. Forestry approved spark arrestor
Carburetor Fixed Main Jet Carburetor
Air Filter Dry type, with foam secondary stage
Grade Capability 60 percent
Warranty 12 Month Limited Warranty
Wheels 12 Inch aluminum drums
Tires 8 x 12 x 25" tubeless
Wheel Base 51 Inches (129.5 cm)
Ground Clearance (off-road) 14 Inches (35.6 cm)
Ground Clearance (on-road) 12.5 inches (31.8 cm)
Height Over Seat (off-road) 32 Inches (81.3 cm)
Height Over Seat (on-road) 30.5 inches (77.5 cm)
Height Over Handlebar (off-road) 41 Inches (104 cm)
Height Over Handlebar (on-road) 39.5 inches (100.3 cm)
Width 32 Inches (81.3 cm)
Length 79 Inches (200.7 cm)
Weight 218 lbs. (98.8 kg) dry weight
Fordable Water Depth 24 Inches (61 cm)
